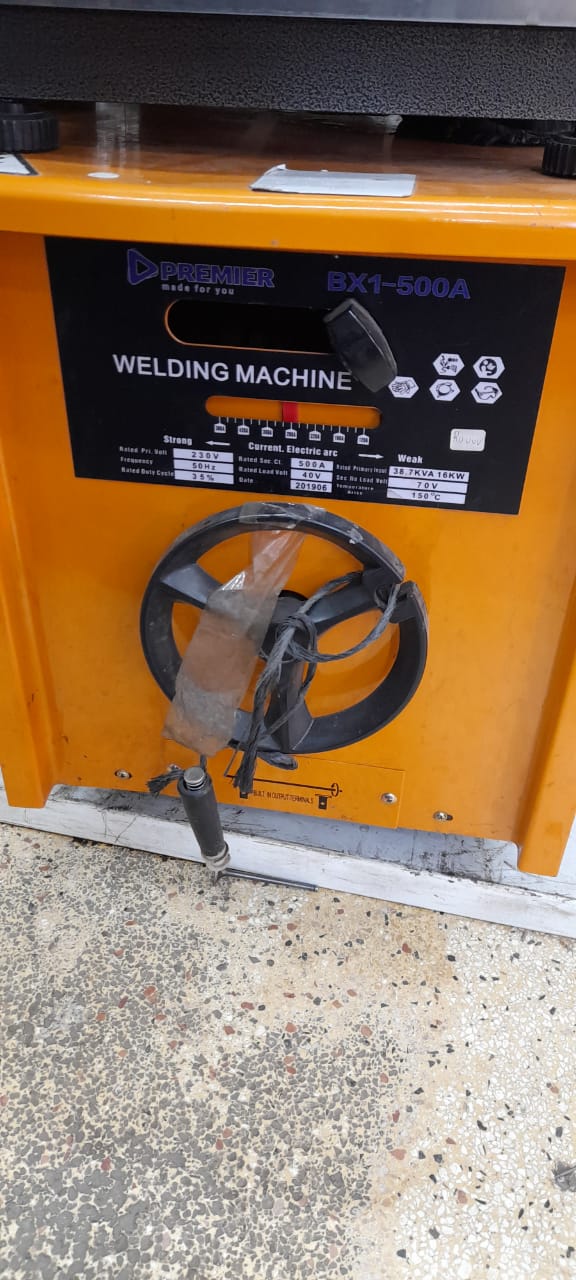

Welding machine BX1-500A

1.AC arc welding machine has good welding performance with stable arc and high frequency.
2.It is more convenient to adjust the current by using the handle shaft.
3.It is more durable with using H class insulation material for winding interior.
4.Magnetic shunt is constituted by fixed core, that can regulate the leakage reactance, to access to the size of the welding current.

Use:
AC arc welding machine is suitable for welding carbon steel, low alloy components in large projects, which are roads and bridges, industrial machinery, agricultural machinery, mining metallurgy, construction and installation, and so on.

Main Technical Parameters:

Features:
– Provide A.C. welding power source suitable for welding of low-alloy steel by using coated electrodes;
– Steady and elastic Arc, less spatter, deep penetration, and smooth welding;
– Small size, lightweight, long service, and reasonable price;
– Easy to set and to maintenance;
– Wide applications.

Technical Index:
Power Source
Power Capacity… … … … … … … 40KVA
Rated Welding current… … … … .500A
Open Voltage… … … … … … … …76V
Welding Range… … … … … … … .100 – 500A
Duty Cycle… … … … … … … … … 60%
Weight… … … … … … … … … … ..142Kg
Protection Class… … … … … … …IP21S
Dimensions… … … … … … … … .670x480x780mm
