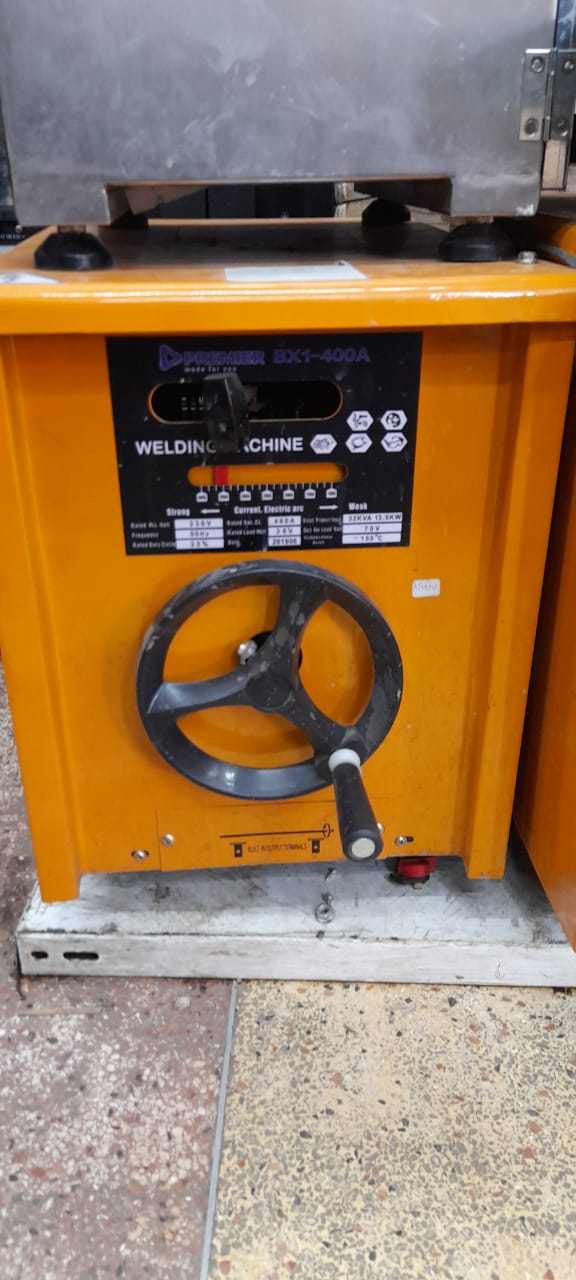

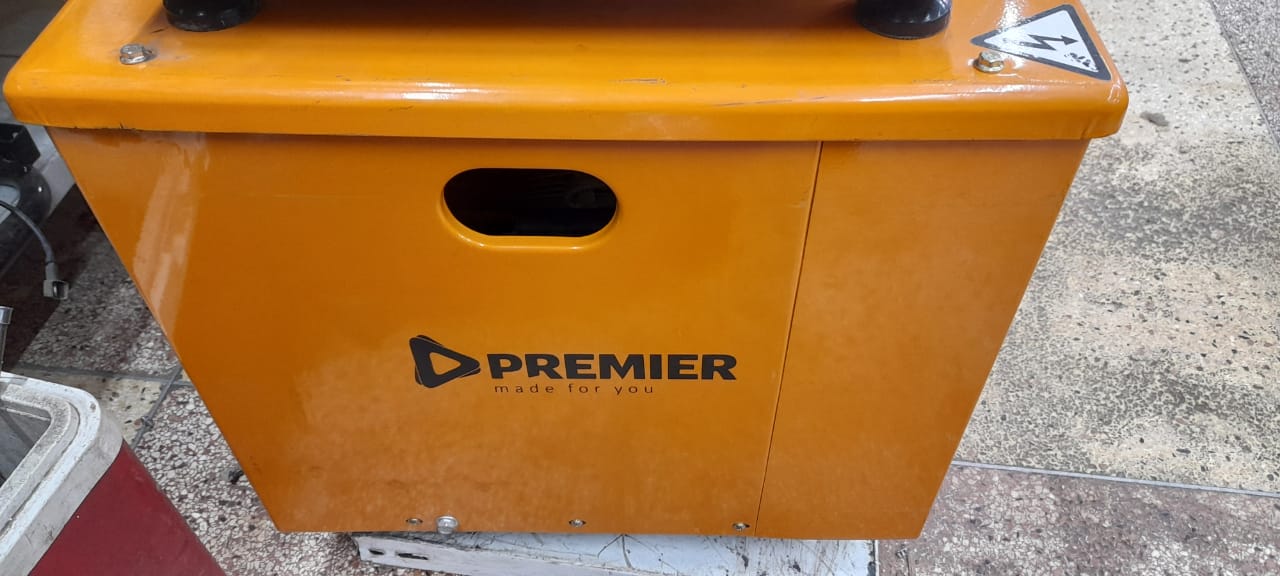

Welding machine BX1-400A
Characteristics:
1.AC arc welding machine has good welding performance with stable arc and high frequency.
2.It is more convenient to adjust the current by using the handle shaft.
3.It is more durable with using H class insulation material for winding interior.
4.Magnetic shunt is constituted by fixed core, that can regulate the leakage reactance, to access to the size of the welding current.
Use:
AC arc welding machine is suitable for welding carbon steel, low alloy components in large projects, which are roads and bridges, industrial machinery, agricultural machinery, mining metallurgy, construction and installation, and so on.
Main Technical Parameters:
| 型号 Model |
BX1-400A | |
| Power Voltage | AC380V/220V | |
| Frequency | 50/60 | |
| Rated Input Capacity | 15 | |
| No-load Voltage | 53 | |
| Current Range | 80～400 | |
| Insulate Grade | E | |
| Welding Rod Diameter(mm) | 2.5～4.0 | |
| Duty Cycle | 30 | |
| Package Size | 420*350*420 | |
| Net Weight | 37.2 | |
